Queen

Attention! The selected product is out of production.

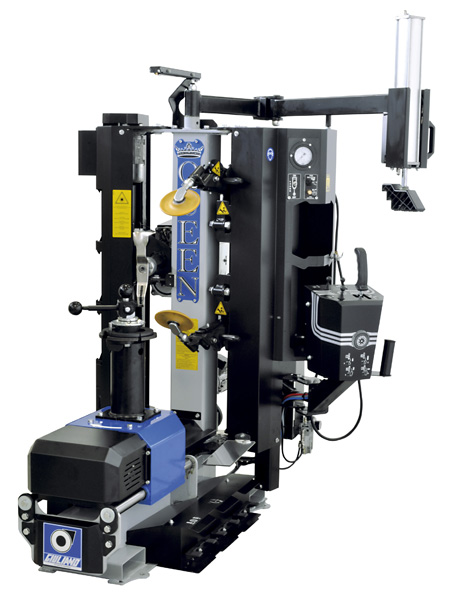

Super-Automatic touchless robotic tyre changer

Super automatic touchless (without use of bead lifting lever) robotic tyre changer suitable for fitting/removing all kinds of passenger car and LCV tyres from 12" to 34" (max. wheel diam. 1200 mm./47", max. wheel width 406 mm./16"). Suggested for top professional tyre specialists, servicing run flat and UHP tyres with no tool/rim contact.

Approved by
Inspection of mounting machine according to wdk-test guideline based on wdk-Mounting/Demounting Instructions UHP and Run Flat Tyres. (*) Version available upon request
Main Features
Car (TC)

Car
Suitable for car wheels

LVL (TC)

LeVerLess
Allows tyre mounting/demounting operations without use of classic conventional tyre lever, making the operations more practical, easy, intuitive and without any stress for the operator.

12\

12"-34"
Allows to operate with tyre assemblies from 12" to 34".

RACING (TC)

Racing
Tyre changer with reinforced chassis.

QC OLD (TC)

Quick Clamping
Rim clamping is made through a cone and a quick ring nut. The absence of a turntable plate removes the restraint of the clamping range, normally found on conventional rim-clamp tyre changers.

SLOCK

Smart Lock
SMART LOCK is the fastest manual wheel clamping system on spindle chuck in the world. Thanks to the “expanding nut” (GIULIANO exclusive patent), you just need a 90° movement on the knob after dropping the shaft into the center hole, to have a complete, safe and reliable wheel clamping on your spindle chuck, with no need of tricky hooking. Complete wheel clamping operation needs just 2 seconds. The absence of a turntable plate removes the restraint of the clamping range, normally found on conventional rim-clamp tyre changers.

JOYSTICK

Joystick
Allows to move the tool with maximum simplicity and accuracy.

RBB (TC)

Roller Bead Breaking
Bead breaking by disks, without contact with the rim, works with tyre assembly in horizontal position

PA (TC)

Press Arm
Helps easy mounting/demounting of the second bead of ultra low profiled tyres or run-flat.

2SPEED (TC)

Two speed chuck
Two speed hydraulic chuck, allows to adjust rotation speed in accordance with the type of operation to perform, ensures work efficiency and safety.

Robotic tyre changer without use of bead lifting lever, suitable for fitting/removing all kinds of passenger car and LCV tyres from 12" to 34" (max. wheel diameter 1200 mm/47", max wheel width 406 mm/16"), no risk of damaging the rim because of no contact between finger tool and rim (touchless and leverless tyre changer).
Suggested for top professional tyre specialists, servicing run flat and UHP tyres with no tool/rim contact.
Functions
  • Double arm/disk air operated bead breaker system;
  • Equipped with total touchless mount/demount tool;
  • Double rotation speed by pedal and motoinverter;
  • Patented SMART LOCK ultra-quick wheel clamping system, through cone and shaft with Smart Lock nut;
  • Wheel positioning through motorized clamping chuck and laser pointer;
  • Tyre inflation by pedal (standard);
  • Operated by pedal and joystick;
  • Equipped with Press Arm (standard);
  • Suitable for Tyre Lift (optional).
(*) Version available upon request
Rim clamping range 12" - 34"
Max. tyre diameter 1200 mm (47")
Max. tyre width 406 mm (16")
Bead breaker force at 10 bar 14406 N
Operating pressure 10 bar (145 psi)
Power supply 220V - 1ph / 2 speed
Motor power 0,75 kW
Rotating speed 7-16 rpm
Pre-set tyre inflating pressure 3,5 bar (50 psi)
Net weight 515 kg
Max overall dimensions 1350x2000x1900 mm
Standard Accessories
Standard accessories
Pedal operated inflating device.
Air filter with pressure regulator and CE manometer.
Optional Accessories
Wheel clamping adaptor for reverse mounted wheels and wheels with no center hole
Kit of 7 long conical pins for FPM456
Kit of 6 spheric pins for FPM456
Truck cone kit, allows clamping VANs and LCVs wheels with center hole diameter from 120 to 190 mm.
Truck cone kit, allows clamping VANs and LCVs wheels with center hole diameter from 140 to 220 mm.
Double face cone for light trucks, allows clamping VANs and LCVs wheels with center hole diameter from 75 to 145 mm.
Cone for steel rims with low thickness and center hole diameter from 75 to 120 mm
G-CLAMP Set. Helps adding extra bead-pressure points on top bead while assembling it. Kit includes 2 regular and 2 extra-size G-clamps.
Kit of nylon protectors for mounting/demounting tool.
Kit of 4 rubber protections for steel rims.
Kit of 4 rubber protections for aluminium rims.
Kit of 4 rubber protectors for aluminium rims with arched spokes.
Lube paste bucket, 1 kg.
Kit of 2 shims for ring nut.
Plastic tyre lever for soft tyres removing operations. To be used during tyre demounting in accordance with the WDK procedure.
Kit of 10 ABS protections for cone.
Kit of 10 rubber protections for clamping chuck faceplate
Longer bead pressing tool for Press Arm.
Articulated arm for mounting/demounting of soft tyres, including bead lever.
Air operated wheel positioner.
Kit of QX adaptors for connection to quick release kit (QCK).
Pressing cone for clamping RUN FLAT tires from outside.
Kit Run Flat UHP
Fixed roller plate, to ease bead breaking of heavy wheels.
