S 112 F

Attention! The selected product is out of production.

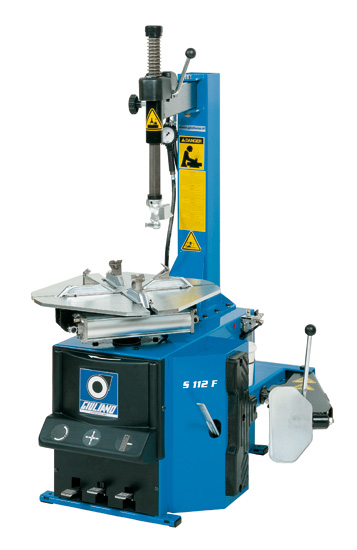

Semiautomatic tyre changer with sidewards moving arm

Semiautomatic tyre changer with sidewards moving arm, suitable for car and motorcycle wheels having rim size from 10" to 20" (max. diameter 1000mm/39", max. wheel width 330 mm/13").

Approved by
Main Features
Car (TC)

Car
Suitable for car wheels

SEMI (TC)

Semiautomatic
Model with 3 control pedals, fixed vertical tower, swinging horizontal arm and operating arm with manual lowering and locking by hand-lever.

10\

10"-20"
Allows to operate with tyre assemblies from 10" to 20".

JC (TC)

Jaw Clamping
Rim clamping is performed by means of 4 jaws facing each other, driven by pneumatic cylinders connected to the control pedal.

BBB (TC)

Blade Bead Breaking
Bead breaking by conventional blade, works with tyre assembly in vertical position

Semiautomatic tyre changer with sidewards moving arm, suitable for car and motorcycle wheels having rim size from 10" to 20" (max. diameter 1000mm/39", max. wheel width 330 mm/13").
Features
  • Fixed vertical arm;
  • Sidewards moving horizontal arm;
  • Operating arm locking by handwheel ;
  • 18" turntable, outside clamping ;
  • Air operated bead-breaker;
  • Extractable pedal unit;
  • Oversize body
  • Motor 230/400V-3ph-50Hz.
Rim clamping range 10" - 20"
Max. tyre diameter 1000 mm (39")
Max. tyre width 330 mm (13")
Max. bead-breaker cylinder force 2500 kg
Operating pressure 10 bar (145 psi)
Power supply 230/400 V 3ph
Motor power 0,55 kW
Max. spindle torque 1200 Nm
Inflating pressure limiting device max. 3,5 bar (50 psi)
Net weight 195 kg STD
213 kg GT
