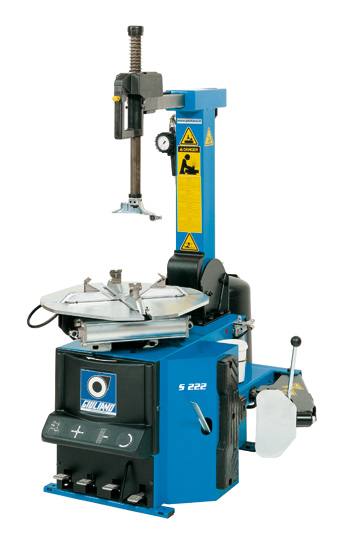

S 222

Attention! The selected product is out of production.

Superautomatic tyre changing machine suitable for car and motorcycle tyres

Automatic tyre changing machine suitable for car and motorcycle tyres having rim size from 10" to 22" (max. diameter 1000mm/39”, max width 330mm/13”).

RUSC
0.61

Resistance Under Stress Coefficient (RUSC) gives some idea of how robust a tyre changer can be, in terms of strength and power against all different kinds of stress involved in mounting/demounting tyres. Do you want to know more about RUSC ? Click here !

Approved by
Main Features
Car (TC)

Car
Suitable for car wheels

AUTO (TC)

Automatic
Model with four control pedals, tilting tower, sliding horizontal arm and operating arm with manual lowering and locking by pushing button.

10\

10"-22"
Allows to operate with tyre assemblies from 10" to 22".

JC (TC)

Jaw Clamping
Rim clamping is performed by means of 4 jaws facing each other, driven by pneumatic cylinders connected to the control pedal.

BBB (TC)

Blade Bead Breaking
Bead breaking by conventional blade, works with tyre assembly in vertical position

Automatic tyre changing machine suitable for car and motorcycle tyres having rim size from 10" to 22" (max. diameter 1000mm/39”, max width 330mm/13”).
Features
  • Tilting vertical arm;
  • Operating arm pneumatical locking;
  • 20" turntable, outside clamping
  • Air operated bead;
  • Breaker-Oversize body;
  • Extractable pedal unit;
  • Motor 230/400V-3ph-50Hz.
Rim clamping range 10" - 22"
Max. tyre diameter 1000 mm (39")
Max. tyre width 340 mm (13")
Max. bead-breaker cylinder force 24700 N
Operating pressure 10 bar (145 psi)
Power supply 230/400 V 3ph
Motor power 0,55 kW
Max. spindle torque 1200 Nm
Inflating pressure limiting device max. 3,5 bar (50 psi)
Net weight 215 Kg STD
233 Kg GT
